MERANO

SPECS.

Frame : Full Suspension 29 Alloy 6061 148mmx12mm travel 130mm Integrated battery

Seat post : SIGNUM Alloy Black 30, 4x350mm

Stem : SIGNUM Alloy 31,8

Shift lever :  SRAM SX Eagle 12 speed

Cassette : SRAM SX 1210 Eagle Cassette 11-50T

Tyres : SCHWALBE Smart Sam kevlarguard 29"x2,60

Saddle : SIGNUM Mtb Performance line

Display : BAFANG E161 led full function set w/bluetooth

Fork : RST Vibe 110 travel 130mm

Handlebar : SIGNUM Aluminium 31.8x760mm w/HERRMANS Shark DD38R grips

Rear derailleur : SRAM SX Eagle 12 Speed

Crankset : BAFANG 32t x 170mm

Wheels : SIGNUM Alloy 32h 29" – SHIMANO Hubs

Brakes : SHIMANO MT200 Hydraulic Disc Brake Rotor 180-180

Drive unit : BAFANG M410 mid motor 36V 250w 80Nm

Battery : BAFANG Intube 36V, 630Wh /17.5ah with BMS

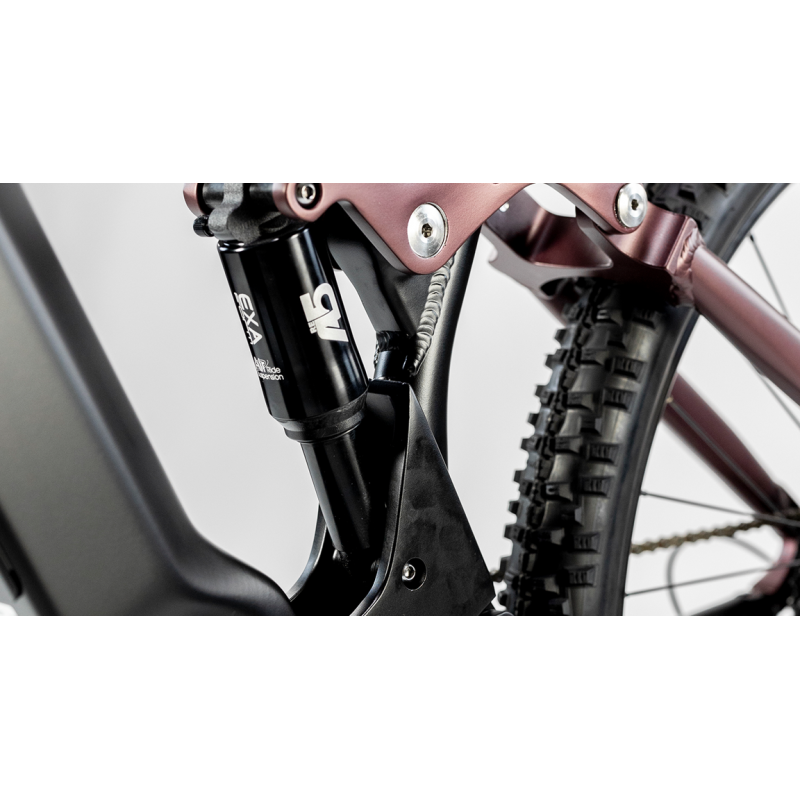

Rear shock : KS A5 190×50

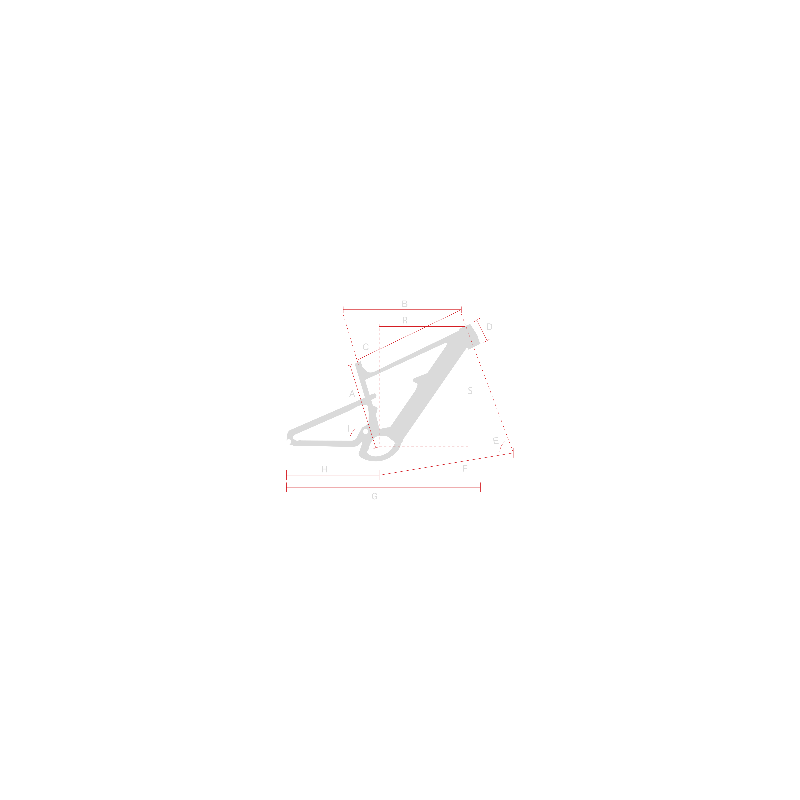

BIKE GEOMETRY

42 : A: 420 | B: 610 | C: 593 | D: 150 | E: 66 | F: 742 | G: 1227 | H: 485 | I: 70 | R: 421 | S: 656

46 : A: 460 | B: 621 | C: 599 | D: 150 | E: 66 | F: 754 | G: 1238 | H: 485 | I: 70 | R: 433 | S: 656

50 : A: 500 | B: 630 | C: 606 | D: 150 | E: 66 | F: 763 | G: 1248 | H: 485 | I: 70 | R: 442 | S: 656

49 : A: 490 | B: 652 | C: 631 | D: 125 | E: 65 | F: 826 | G: 1283 | H: 458 | I: 68 | R: 495 | S: 633
