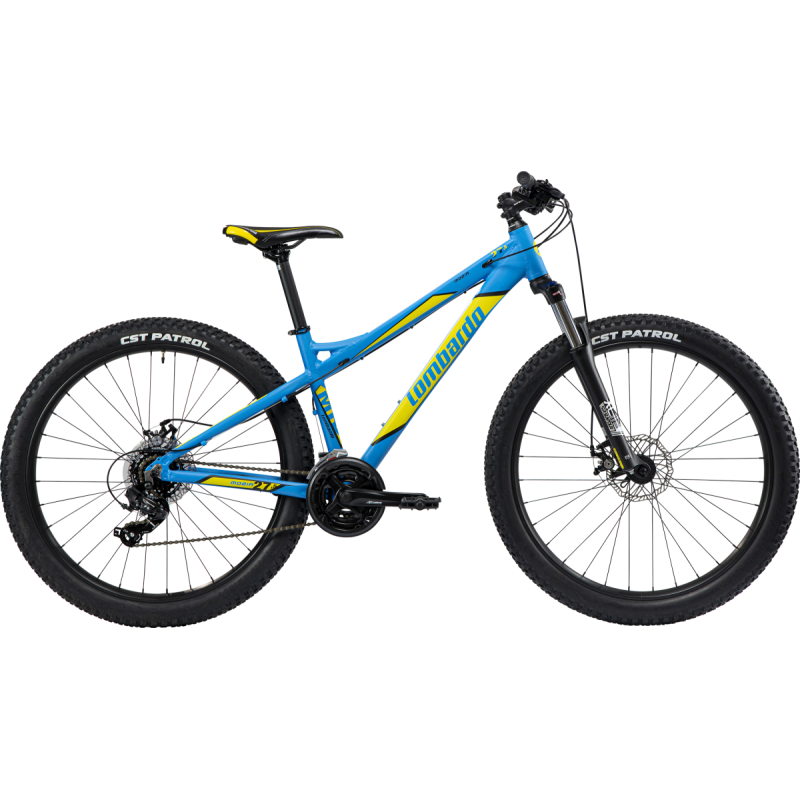

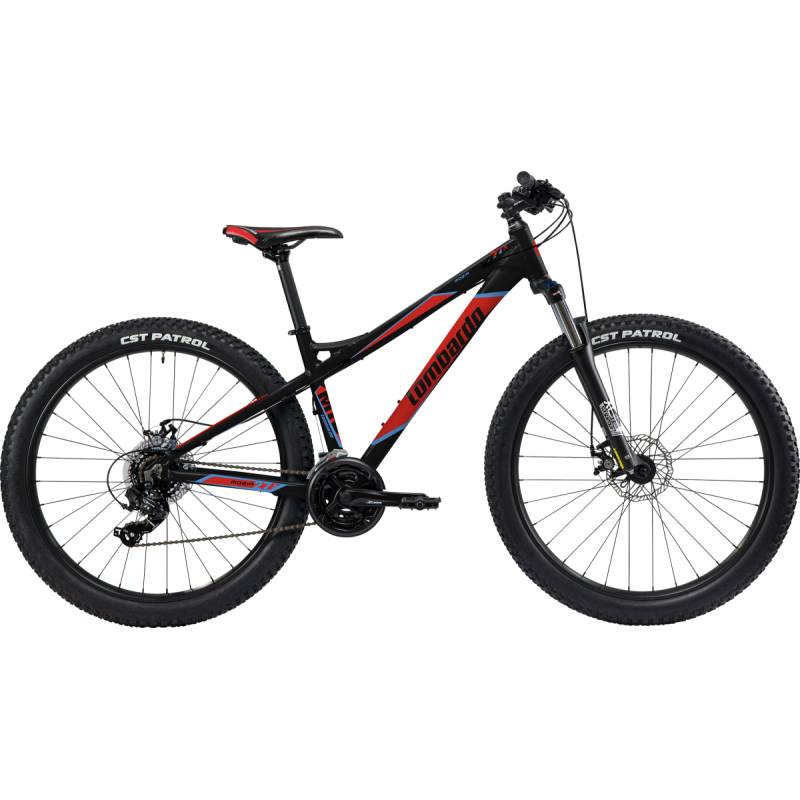

MOZIA

SPECS.

Frame : Mtb 27,5" Alloy 135mm QR

Seat post : SIGNUM Alloy Black 30,9x350mm

Stem : SIGNUM Alloy Black 28,6x90mm

Shift lever :  SHIMANO ST-EF 41R 7speed

Cassette : SHIMANO HG200 12-32 7 speed

Tyres : CST Patrol 27,5" x 2,60

Saddle : SIGNUM Mtb Line

Fork : SUNTOUR XCM HLO 27,5" travel 100mm

Handlebar : SIGNUM Alloy Black 680mm rise 16mm

Rear derailleur : SHIMANO Tourney RD-TY300 7speed

Crankset : SIGNUM Steel 24/34/42 x 170mm

Wheels : SIGNUM Alloy 32h 27,5" – Alloy hubs

Brakes : PROMAX DC-300R or SIGNUM Kit Mechanical Disc Rotor 160-160

Front derailleur : SHIMANO Altus FD-M370 3 speed

BIKE GEOMETRY

35 : A: 355 | B: 580 | D: 120 | E: - | F: 679 | G: 1118 | H: 439 | I: 72

40 : A: 400 | B: 580 | D: 120 | E: - | F: 679 | G: 1118 | H: 439 | I: 72

48 : A: 480 | B: 630 | C: - | D: 106 | E: 68 | F: 732 | G: 1150 | H: 425 | I: 66 | R: 465 | S: 616

51 : A: 510 | B: 654 | C: - | D: 125 | E: 68 | F: 758 | G: 1176 | H: 425 | I: 66 | R: 485 | S: 631
